In Line Quality Measurement

In line real-time measurement of product quality is becoming more important. Two key factors that can be measured in line are water content in ppm and particle size distribution according to ISO 4406:1999. Njord offers both measurement systems that can easily be integrated with our range of automated filtration systems and represent a remarkable cost effective solution to fluid management and contamination control.
- the Zelentech Water in Oil meter delivers continuous, real ime accurate monitoring of the ppm concentrati.on of ALL water (free, dissolved as well as emulsified).
- the Parker i-Count combined with Njord flow control offers laser based leading edge technology.

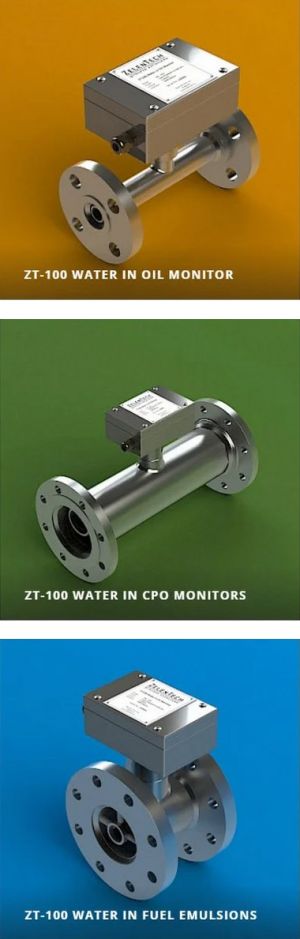

Zelentech Water in Oil Monitor

Water contamination in fuels and oil based fluids can cause numerous problems such as loss of revenue, additive depletion, oil oxidation, corrosion, reduced lubricating film thickness, accelerated component wear rates, microbiological growth, reduction of dielectric strength and loss of power.

The Zelen Tech Water in Oil (WIO) monitor can help prevent such problems associated with water contamination in oil based fluid systems.

Measurement ranges	Low Range 0-25% models as well as full cut 0-100%.
Ports	Screwed NPT, BSP threads or ANSI, JIS or DIN flanged
Pressure rating	16 bar
Construction material	316 Stainless Steel
Minimum flow	0,15 m/s
Interface	4-20 mA output , RS232 command
Power requirements	Loop power 12/24 Volts DC
Housing	CE marked IP66 , ATEX optional

For further information, please refer to: http://www.zelentech.co/products/waterinoil/

Zelentech Water Cut Meters

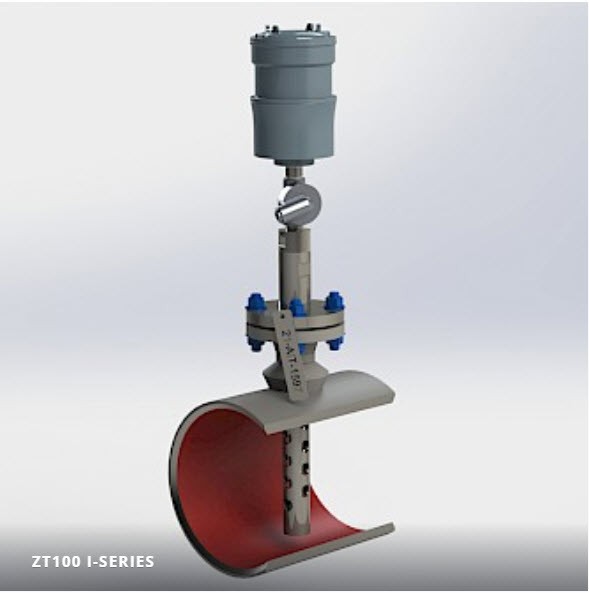

The ZT100 Water Cut Monitor is desidned to provide reliable water content readings in any hydrocarbon, and primarily aimed at Crude Oil applications. The ZT100 features stable temperature compensated readings cou[led with a unique flexibility when it comes to installation.
The ZT100 can be successfully installed as full bore units up to 48 inch, or alternatively in bypass configurations.

They can be supplied with built in or separate Static Mixers to enable a proper representative stream through the sensor.

Sensitivity	0,01%
Repeatability	0,1%
Temperature rating	150°C (300°F) standard
Ports	From 1 to 48 inch
Output	4-20 mA
Interface	HART
Power requirements	Loop power 12/24 Volts DC
Housing	CE marked IP66 , Class 1, Division 1 through certified explosion proof enclosure utilizing separate instrument and connection chambers. ATEX Intrinsic Safe

For further information, please refer to: http://www.zelentech.co/products/watercut/

Parker Icount

The Incount Particle Detector from Parker represents the most up-to-date technology in solid particle detection. The design dynamics, attention to detail, and small size of the permanently mounted, on-line particle detector brings a truly innovative product to all industry. The laser based, leading-edge technology is a cost effective market solution to fluid management and contamination control.

Features and benefits of the Icount PD include:

Independent monitoring of system contamination trends.
Early warning LED or digital display indicators for
Low, Medium and High contamination levels.
Moisture %RH LED indicator (optional).
Cost effective solution in prolonging fluid life and reducing machine downtime.
Visual indicators with power and alarm output warnings.
Continuous performance for dependable analysis.
Hydraulic, phosphate ester & fuel fluid compatible construction.
Self diagnostic software.
Fully PC/PLC integration technology such as: RS232 and 0-5 Volt, 4-20mA.

Digital LED display update time	Every second
4-20mA output signal	Continuous
Principle of operation	Laser diode optical detection of actual particulates
Performance	+/- 1 ISO Code (dependant on stability of fl ow)
Reproducibility / Repeatability	Better than 1 ISO Code
Power requirement	Regulated 9 to 40Vdc
Maximum current draw	150mA
Hydraulic connection	M16 x 2 hydraulic test points (5/8” BSF for aggressive version
Flow range through the device	40 to 140 ml/min (optimum fl ow = 60ml/min)
Inline Sensors	Size 1 = 24 to 100 l/min - (optimum fl ow = 70 l/min) Size 2 = 170 to 380 l/min - (optimum fl ow = 250 l/min)
Required differential pressure	5.8 psi (0.4 bar) minimum
Viscosity range	10 to 500 cSt
Temperature	Operating environment: -4°F to +140°F (-20°C to +60°C) Storage: -40°F to +176°F (-40°C to +80°C) Operating fluid: +32°F to +185°F (0°C to +85°C)
Working pressure	30 to 6,000 PSI (2 to 420 bar)
Moisture sensor calibration	±5% RH (over compensated temperature range of +10°C to +80°C)
Operating humidity range	5% RH to 100% RH
Certification	IP66 rated EMC/RFI – EN61000-6-2:2001 EN61000-6-3:2001
Materials	User friendly construction Stainless Steel hydraulic block Viton seals
Dimensions	7.2” x 6.1” x 3.4” (182mm x 155mm x 86mm)
Weight	2.9 lbs. (1.3 kg)
